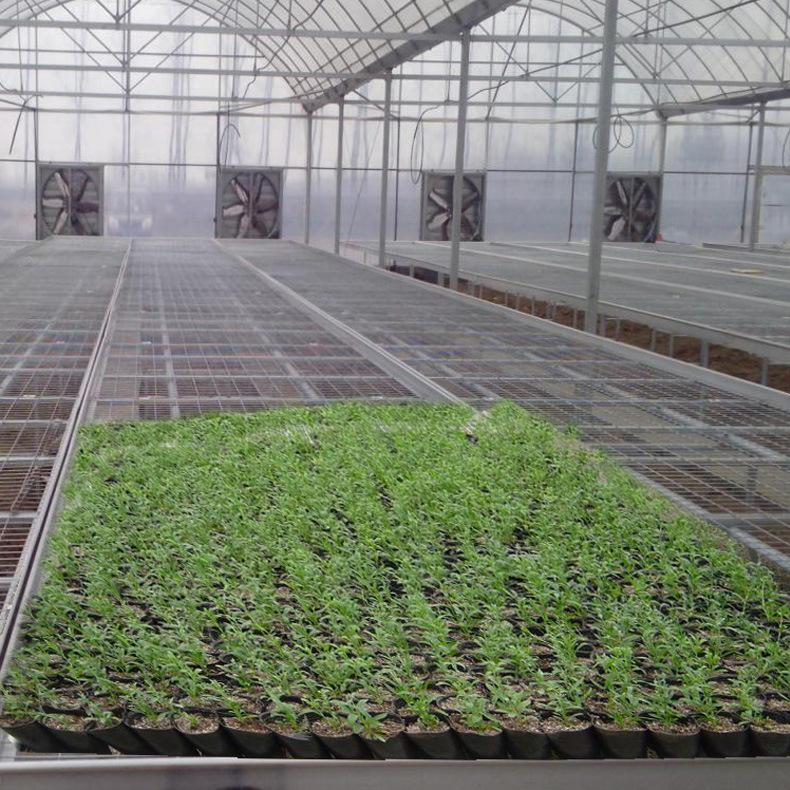

移动苗床边框为铝合金价格优越
移动苗床规格：
苗床设计宽度1.4m,长度38m,高度0.75m,每跨设4组,总计24组
苗床立柱、横梁采用40×30×1.5mm的矩形管,床面四周采用铝合金边沿,网片所有材料都采用热镀锌处理。
材质:优质低碳钢丝
丝径4.0mm /3.0mm
网孔 120 mm×25mm 130mm×30mm 50mm×50mm
**尺寸: 1.9m×4m
加密网格结构(20mm×120mm),网面美观,强度更大。
Mobile seedbed specification:
The design width of the seedbed is 1.4m, the length is 38m and the height is 0.75m. There are 4 groups in each span, with a total of 24 groups
The column and crossbeam of seedbed are made of 40 × 30 × 1.5mm rectangular tubes. The edge of aluminum alloy is used around the bed surface. All materials of mesh are hot-dip galvanized.
Material: high quality low carbon steel wire
Wire diameter 4.0 mm / 3.0 mm
Mesh 120 mm × 25 mm 130 mm × 30 mm 50 mm × 50 mm
Maximum size: 1.9m × 4m
Dense grid structure (20 mm × 120 mm), beautiful mesh surface, stronger strength.
移动苗床的构造 1、移动苗床主体骨架为热镀锌钢架构造。 2、移动苗床边框材料为铝合金型材构造或角钢热镀锌构造。 3、苗床网片由直径为Φ4.0、Φ3.3、Φ3.0的铁丝焊接而成，网孔一般为130mm*30mm、130mm*25mm、120mm*25mm、50mm*50mm的长方形网状构造热浸镀锌、浸塑或者电镀而成。具体原料和网孔构造的巨细可根据床面承重巨细而定。
The main framework of the moving seedbed is hot-dip galvanized steel frame. 2. The frame of moving seedbed is made of aluminum alloy profile or hot-dip galvanized angle steel. 3. The seedbed mesh is welded by iron wire with diameter of Φ 4.0, Φ 3.3 and Φ 3.0, and the mesh is generally made of rectangular mesh structure of 130mm * 30MM, 130mm * 25MM, 120mm * 25MM and 50mm * 50mm, which are hot-dip galvanized, dip molded or electroplated. The size of the specific raw materials and mesh structure can be determined according to the bearing size of the bed surface.
